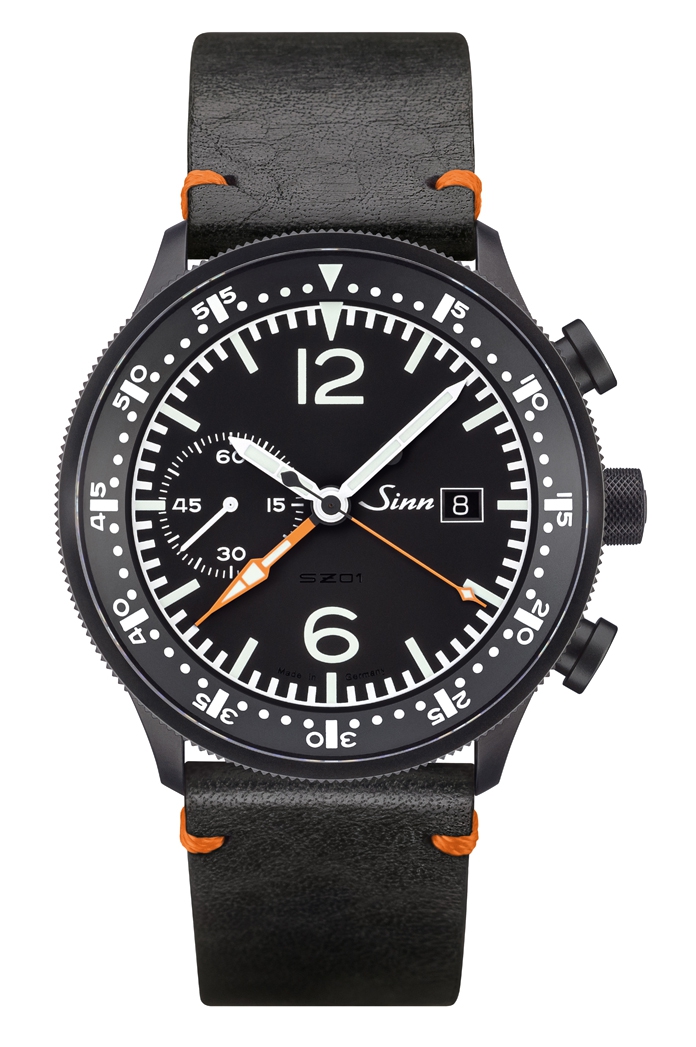

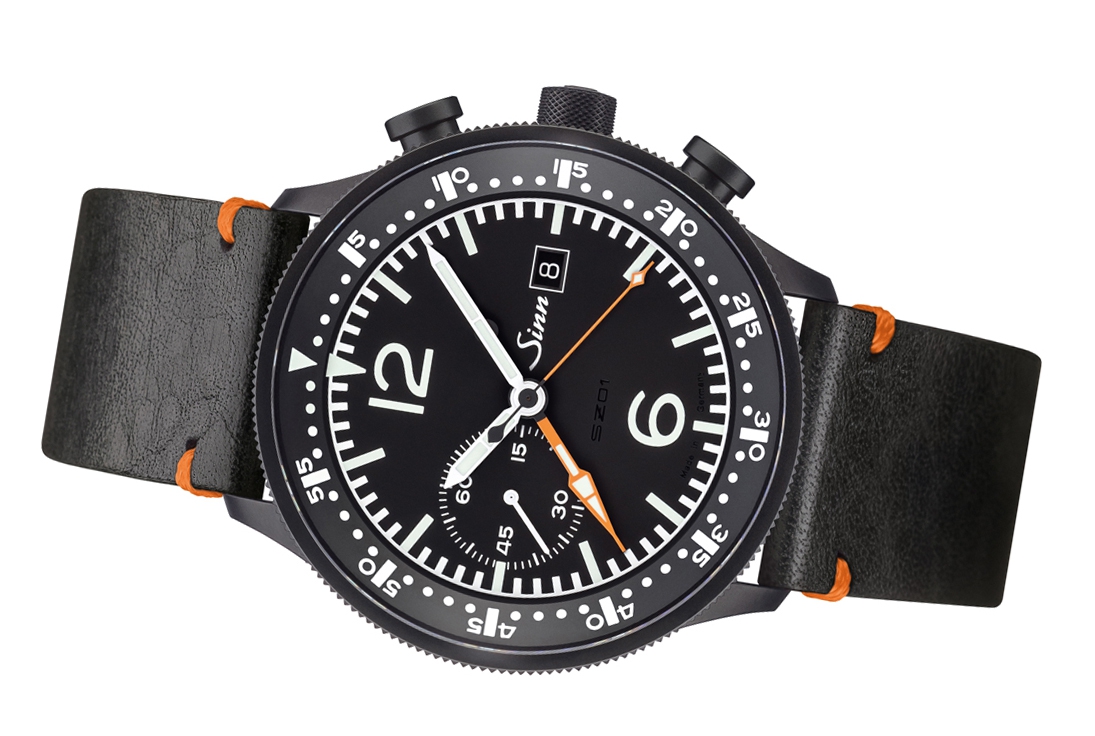

Sinn 717 Cockpit Wristwatch

Delivery June

The Sinn Spezialuhren brand has always stayed true to its roots, ultimately making a name for itself back in the early 1960s with its pilot watches and cockpit clocks. Originally designed for the German Luftwaffe’s Tornado programme in the late 1970s, the Nabo 17 ZM was a cockpit clock with a central minute counter. These type of cockpit clocks are still used by the military today in Tornado multirole combat aircraft. They were also used in the F-104 Starfighter, the Breguet Atlantic – a long-range maritime patrol aircraft – and in military helicopters such as the Bölkow Bo 105. A special feature of these clocks was the start and reset buttons at the bottom of the case, as well as the easy-to-read orange hands of the chronograph’s central stopwatch display for seconds and minutes.

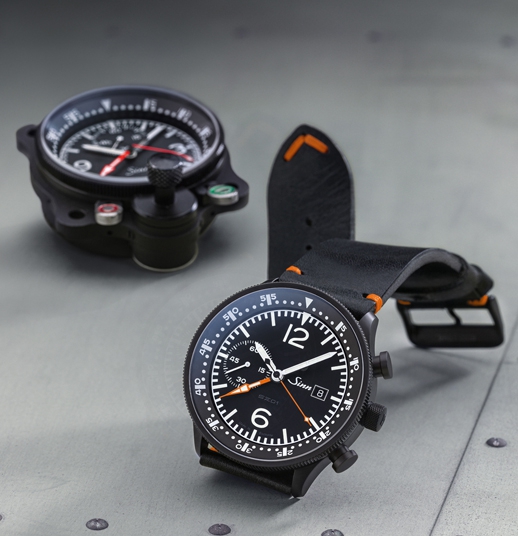

The design and style of the Nabo 17 ZM provided the inspiration for model 717. This timepiece also features a central stopwatch display for seconds and minutes in the form of large orange hands, which is created using our time-honoured SINN chronograph movement SZ01. The case houses an interior pilot’s bezel, which can be smoothly operated from the outer diameter of the watch. In keeping with its predecessor, the dial is distinguished by its excellent readability – even in the dark or under adverse lighting conditions – thanks to the sapphire crystal glass with antireflective coating on both sides. All in all, and at 45 mm in diameter, the 717 cuts a fine figure.

Mechanical Movement
SINN Movement SZ01
Self-winding mechanism
28 bearing jewels
28,800 semi-oscillations per hour
Seconds stop function
Anti-magnetic as per DIN 8309

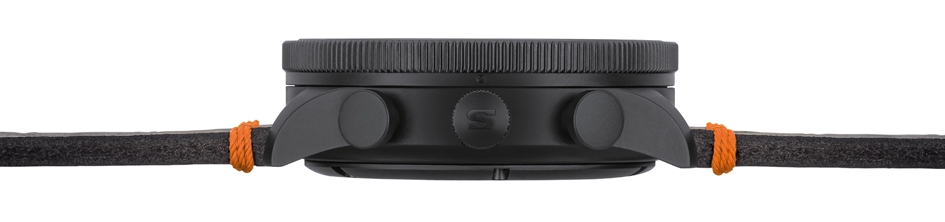

Case
Case made of stainless steel, bead-blasted
Sapphire crystal glass in front, anti-reflective on both sides

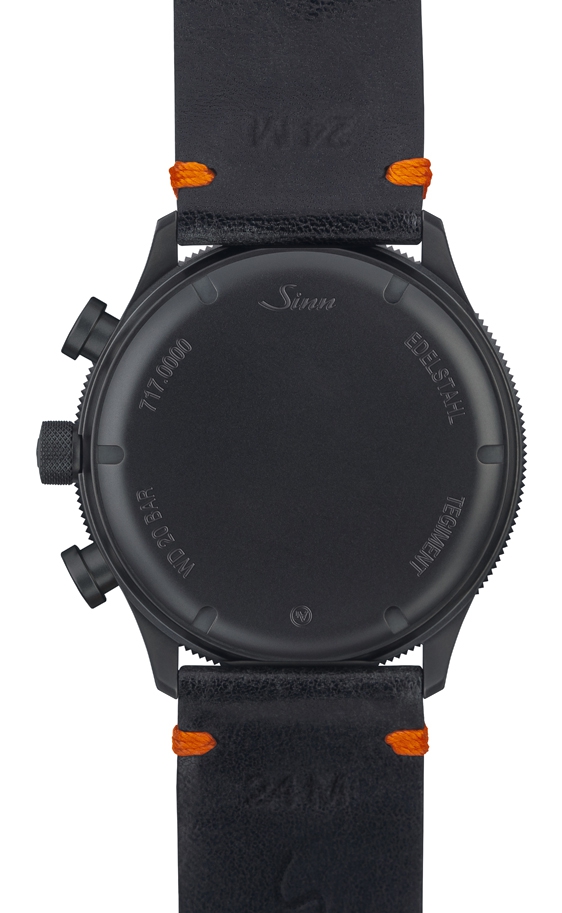

Case back screw-fastened
Crown screwable
Meet the technical requirements for waterproofness, as set out in standard DIN 8310
Waterproof and pressure-resistant to 20 bar
Low pressure resistant

Functions
Hours, minutes, subsidiary seconds
Chronograph
60-minute stop function from the dial centre
Date display
Interior pilot's bezel with luminous key mark

SINN Technologies
Black Hard Coating on a TEGIMENT Technology basis
Ar‑Dehumidifying Technology enhances functional reliability and freedom from fogging

Dimensions and Weight
Case diameter: 45 mm
Band lug width: 24 mm
Case thickness: 15,3 mm
Weight without strap: 114 gramme

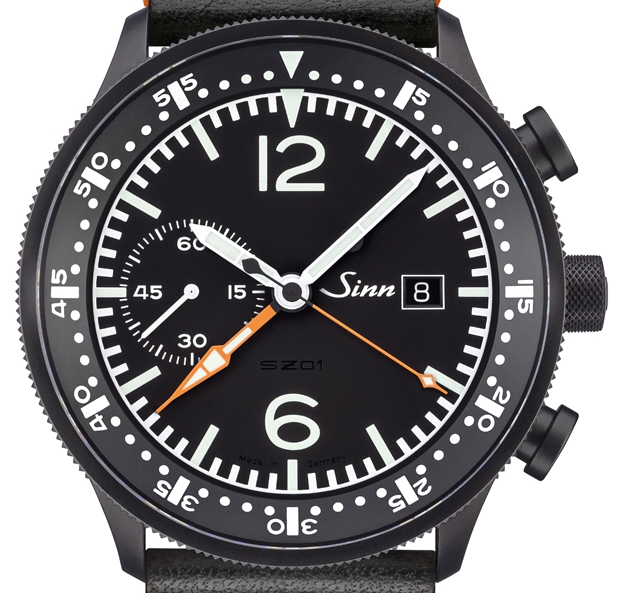

Dial and Hands
Matte black dial
Numbers and indices coated with luminescent colour
Hour, minute, stopwatch minute and stopwatch second hand coated with luminescent colour

Warranty
3 years

£4,125.00

Key Characteristics

Brand: Sinn
Band: Steel Bracelet
Case Material: Black Steel
Condition: Brand New
Movement: Automatic

Additional Product Details

Sinn Watches was formed in 1961 by the legendary pilot and flight instructor Helmut Sinn. They began manufacturing flight watches based on his extensive aviation experience, this was primarily based on Mr. Sinn's dissatisfaction with the watches that were available for pilot and navigational purposes at that time. His own designs incorporated the features and functionality that he felt more fit for purpose as an instrument watch. This is a design philosophy that has transcended the company's culture right through to the present day. Sinn is now the world's most eminent manufacturer of high quality, precision, functional and purposeful instrument watches. From the beginning, their emphasis was on creating special purpose instruments that performed under extremely adverse operating conditions such as high speed, high and low pressures and altitudes, intense heat or pressure, extreme cold, high magnetic interference, and submergence in liquids. Sinn are becoming increasingly known for their instrument watches, and are today a force to be reckoned with as they lead the way in instrument watch design. The company changed hands in 1994 when Lothar Schmidt formerly of IWC assumed control and further expanded the boundaries of Sinn’s high tolerance manufacturing expertise. Over the past decade, Sinn has pioneered some innovative new technologies, including oil filled watch chambers to enable operation under extreme pressures, argon gas filled watches to prevent moisture infiltration, impact resistant gear suspensions, and new micro-lubricating techniques. Their timepieces are standard equipment in some of the most dangerous and adverse environments on earth - little surprise their watches are issued to the German military and elite forces. Above all the watches are manufactured and marketed to the world at large. Like the designs and their application areas, the pricing of the Sinn watches is most aggressive, making them available to most people. Due to distribution agreements Sinn watches can only be shipped to the UK and Ireland and certain countries where there is no Sinn agent assigned to that territory. Sinn watches are covered by a two or three year manufacturers warranty depending on the model.
